Thompson 4200 Mixer Mincer

Incorporating all of the strength and features of the 4000 Series the Thompson 4200 Mixer Mincer has been designed and constructed to withstand the higher forces and demands with colder temperature blocks.

The Thompson 4200 Frozen Mixer Mincer is available and is constructed to process hard, frozen product.

The construction of the heavy duty reinforced bowl and paddles have been structurally engineered to process tempered blocks size of 150 x 150 x 400mm at -1°C. Frozen blocks of meat 50mm cube/flaked at -10°C through a minimum hole plate of 8mm diameter.

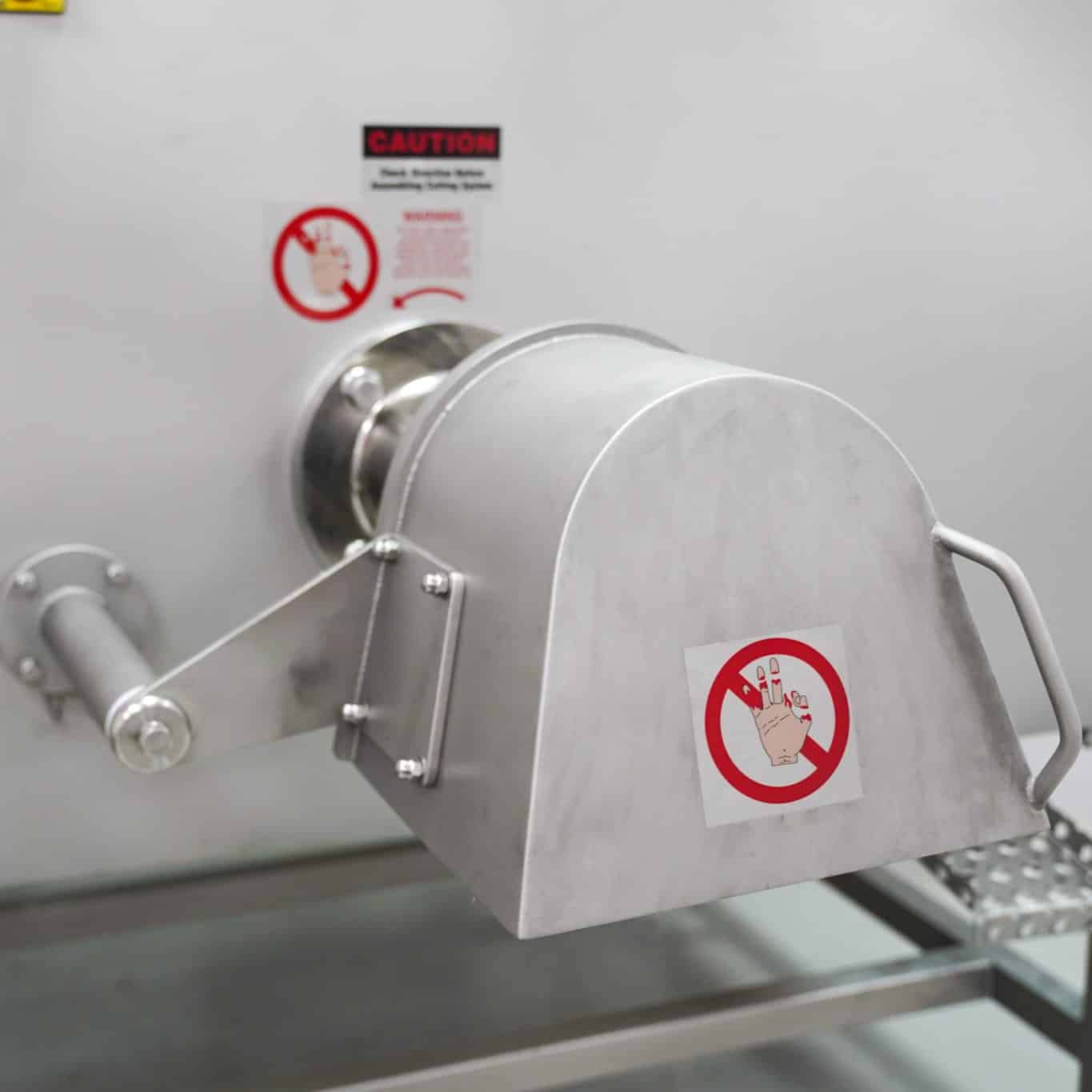

The frozen feedscrew is uniquely designed with an infeed bellow in the channel to the barrel.

This bellow, incorporated with the specific flight design to the feedscrew, cuts the product into small pieces and feeds to the cutting head.

Powerful motors with high torque transmissions achieve high production rates on coarse mince with a hard, dry product.
