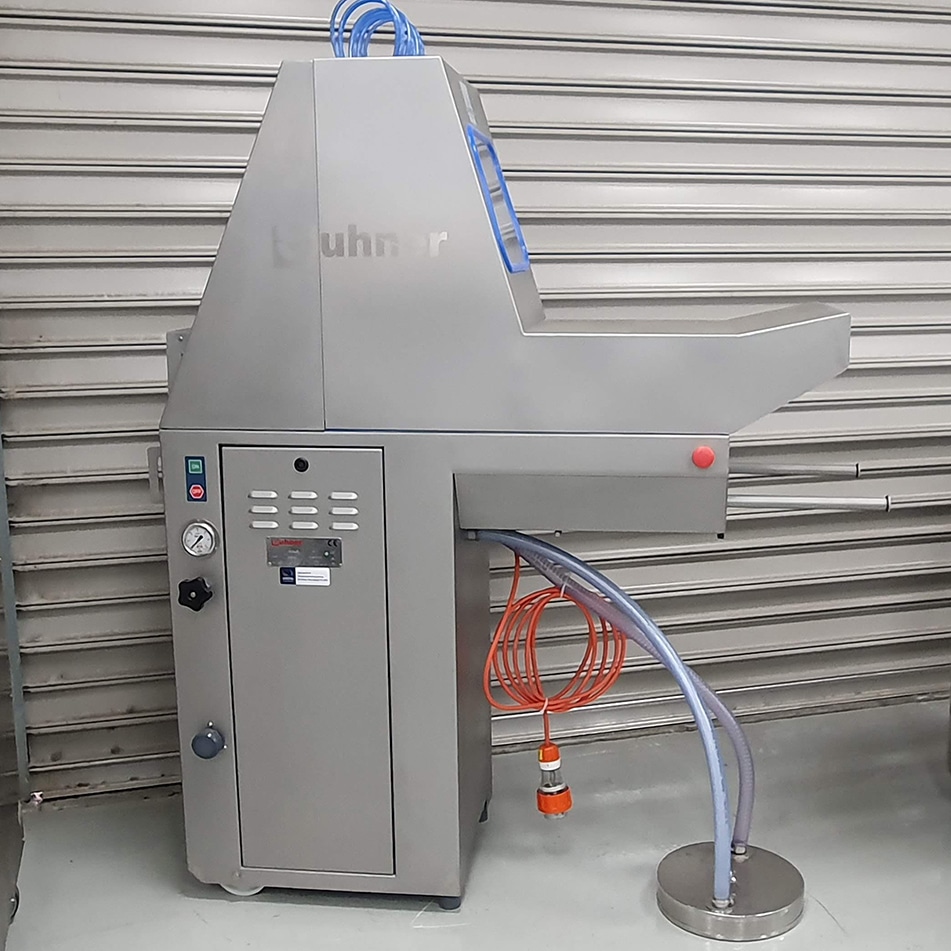

Suhner WS10 Brine Injector

The robust and precise injector for small and medium enterprise, the Suhner is an ideal solution for customers looking for the highest quality and flexibility wishing to keep production and maintenance costs low.



WS injectors are produced for use on meat, poultry and fish, for product with or without bones.



Advantages at a glance:

  • Raising quality and profit
  • Improving the taste and tenderness
  • Quick curing of the product
  • Lower production and storage costs
  • Easy operation and cleaning
  • Low wear and maintenance costs
  • Swiss quality



WS-injectors are manufactured in 300mm and 450mm conveyor belt width and are standard equipped with 10 to 240 needles.

The mechanical adjustment of the pressure of the belt speed and the passage height enables easy handling and low cost service.

All components and the robust design meet the stringent Swiss quality standards and guarantee a long and reliable service life.

Easy Handling

The pump pressure, the conveyor belt feed and the needle frame (with adjustable passage height) are manually adjustable without tools. In the WS-models (450 mm conveyor width) the pump pressure and the working cycle may be regulated directly using the electronic control. The electronic control enables for different stroke speeds of the needle frame, making different injection patterns and a higher yield possible.



Consistent Results

To ensure a uniform brine distribution and consistent injection pressure, Suhner Injectors operate with a special segment system, which ensures that no brine is discharged before the needle penetrates the product. Any brine which is not injected into the product thanks to the segment system will be automatically filtered and fed back into the brine container. This machine ensures constant high pressure thanks tothe high-quality impeller or rotor pump made of stainless steel.



Hygiene and Service

Filter, conveyor belt and needles are all removable without tools, making the cleaning process efficient and easy. The supplied cleaning bar ensures that all needles are rinsed during the cleaning process and therefore do not clog.

arrow_forward Submit An Enquiry

Please fill out this form and we will be in touch

Product Enquiry
Viking Hire
help

Specifications

link Copy link to this section
Model 10 Needle
Conveyor Width 300mm
Free Passenger Height 170mm
Dimensions (L x W x H) 1540 x 560 x 1720/1920mm
Power Supply 415V / 10A
Range of Brine Pressure 0-4.5bar
